MEUS Capra MIRRORED

Aluminum Axle Housing

All Assembly items are the same as the normal axle, the only difference in the skid is for the opposite offset.

This instruction will cover the mods needed to the axle only.

Crawling Addiction logo with Facebook and Instagram icons and handle @crawler.addiction

QR Code for Normal Axle

A QR code with a small dinosaur silhouette in the center.
Text with a hammer and wrench icon that says 'Tools Needed'

M3 Tap

M2.0 or smaller drill bit

M2.5 drill bit

1-   Take a M2 drill bit and drill through from the back of the axle, the hole is tapered so it should self center. Drill through the last 3mm of the taped hole for the BTA mount.

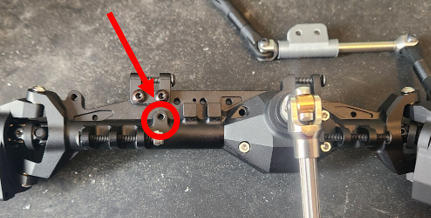

Close-up of a mechanical drive shaft or component with a red arrow pointing to a specific screw or bolt

2-   to not wipe out any of the M3 threads that are in that hole already. use a M2.5 and mark a 3mm depth to stop the drill. Drill from the front through the pilot hole that was done on step 1 previously.

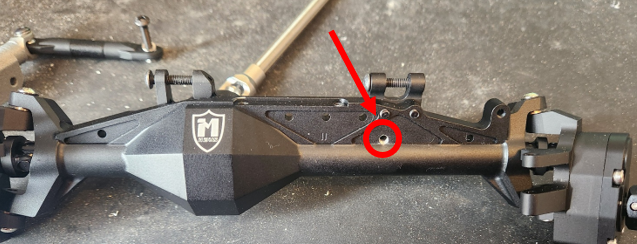

Close-up of a model RC car chassis with a red arrow pointing to a specific bolt or screw.

3-   Use the M3 Tap to chase the original threads from the back of the axle. Then proceed to tap all the way through the axle housing.
