MEUS Capra

Aluminum Axle Housing

Social media icons and username for Crawler Addiction on Facebook and Instagram
Exploded view of a mechanical assembly with labeled parts such as a steering cylinder, clamp, ram, screws, and a hydraulic cylinder, accompanied by a parts list.

If you need the mirrored rear axle there are minor modification needed to fully secure the skid to the axle. There is a different skid plate for that axle scan the optional QR code

Mirrored Axle QR Code
Tools Needed

M2 Hex Driver

Logo of Supply Parts, with a ship icon to the left of the text

Skid

Grey and Black Cylinder

Grey and Black Clamps (Clamps are compatible with the H10 stock clamps or equivalent)

All Mounting hardware

Placeholder for Add'l Required Parts

M4x30mm stud (Or M4x30mm bolt with the head cut off) – Qty. 2

M3x24mm

M3x30mm

*Incision H10 Hydro Ram Steering Set - SKU: IRC00192

*2 add’l Vanquish rod ends - SKU: IRC00010 (or equivalent)

*Only required if you purchased the unassembled parts kit version

Disassembled small mechanical component with screws, a bearing, and metal parts on a white background.

Partial Assembly Kit

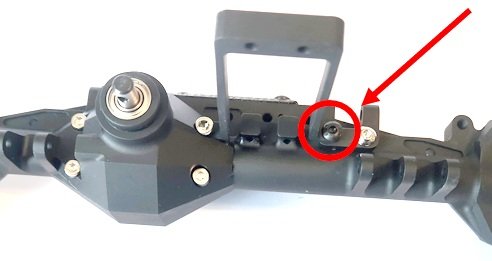

1-   Place Skid onto front of axle. Place M3x6mm Button head screw in the hole over the differential housing, use M2 hex driver to tighten the bolt.

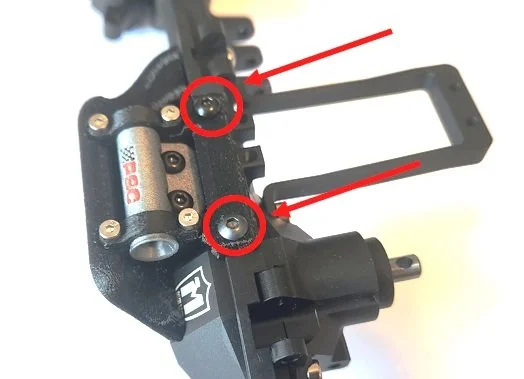

2-   Place M3x8mm Button head screw in the other top mount hole, use M2 hex driver to tighten the bolt.

Close-up of a remote control car chassis with a red arrow pointing to a screw on the steering assembly.

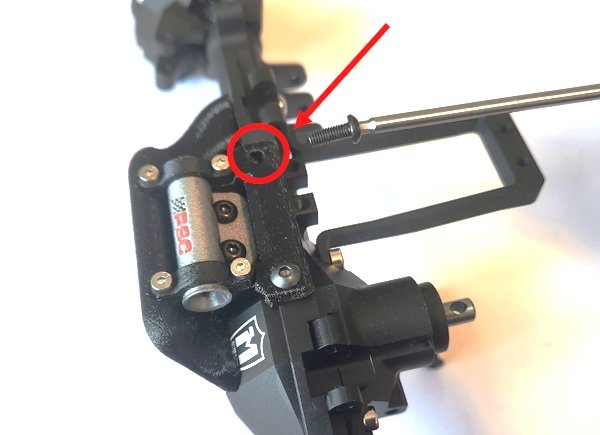

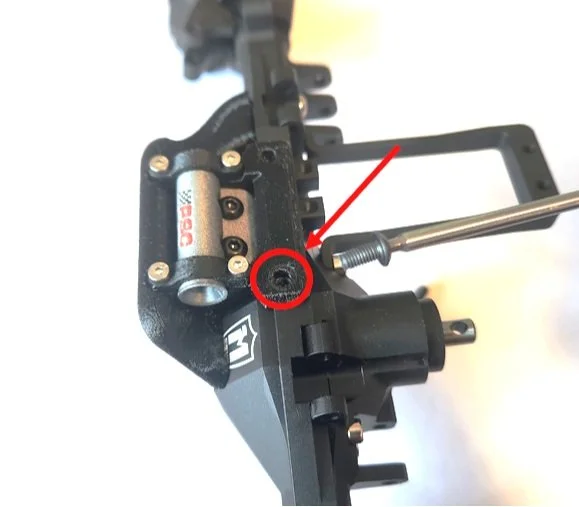

3-   Place M3x20mm Button head screw in BTA mount hole, use M2 hex driver to tighten the bolt. make sure you hold the front of the skit tight up against the axle while you do. the axle is threaded. This bolt is redundant and helps to keep the skid against the axle, the previous 2 bolts hold everything perfectly fine.

Close-up of a mechanical component with a screwdriver pointing at a screw on a black and metallic device.
A black mechanical device with two red arrows pointing to screws on top.
Close-up of mechanical assembly with a metal component, screws, and a red arrow pointing to a specific hole, including a screwdriver nearby.
Close-up of a drone frame showing a red arrow pointing to a small screw or bolt on the top part of the frame.

Full Assembly with Steering Ram kit:

4-     To assemble the short steering links, take 4 standard Incision end links, insert the supplied pillow balls from the Steering Kit. I took a M4x30mm stud, if you don’t have one you can use a M4x30mm SHCS and used a cutoff wheel to remove the head and use the remaining stud length to join the end links together. Slide the ram through the printed cylinder, bolt on yokes supplied in the Incision kit and install the short linkages. This setup is a high steer, and is mounted on the top of the knuckle. Place the links to the topmost surface of the Knuckle, place a spacer where the old linkage would have gone. I would use a M3X30mm for the servo linkage side and a make sure the bolts that hold the linkage through the ram are facing up to clear the skid plate. The H10 links in the Incision kit do not work, they are too short.

A mechanical assembly with metal parts, screws, and a black plastic frame, possibly part of a drone or small robotic device.
Two small black hinge parts with gold screws and a gold spring, arranged next to each other on a white background.
Disassembled RC car steering mechanism with black and silver parts, screws, and a black component labeled PSC.
An RC car chassis with wheels, motor, and electronic components on a white background.
