HD44

Aluminum Axle Housing

Social media handles for Crawler Addiction, including Facebook and Instagram usernames.
Icon of a hammer and wrench crossing each other, with the text 'Tools Needed' underneath.

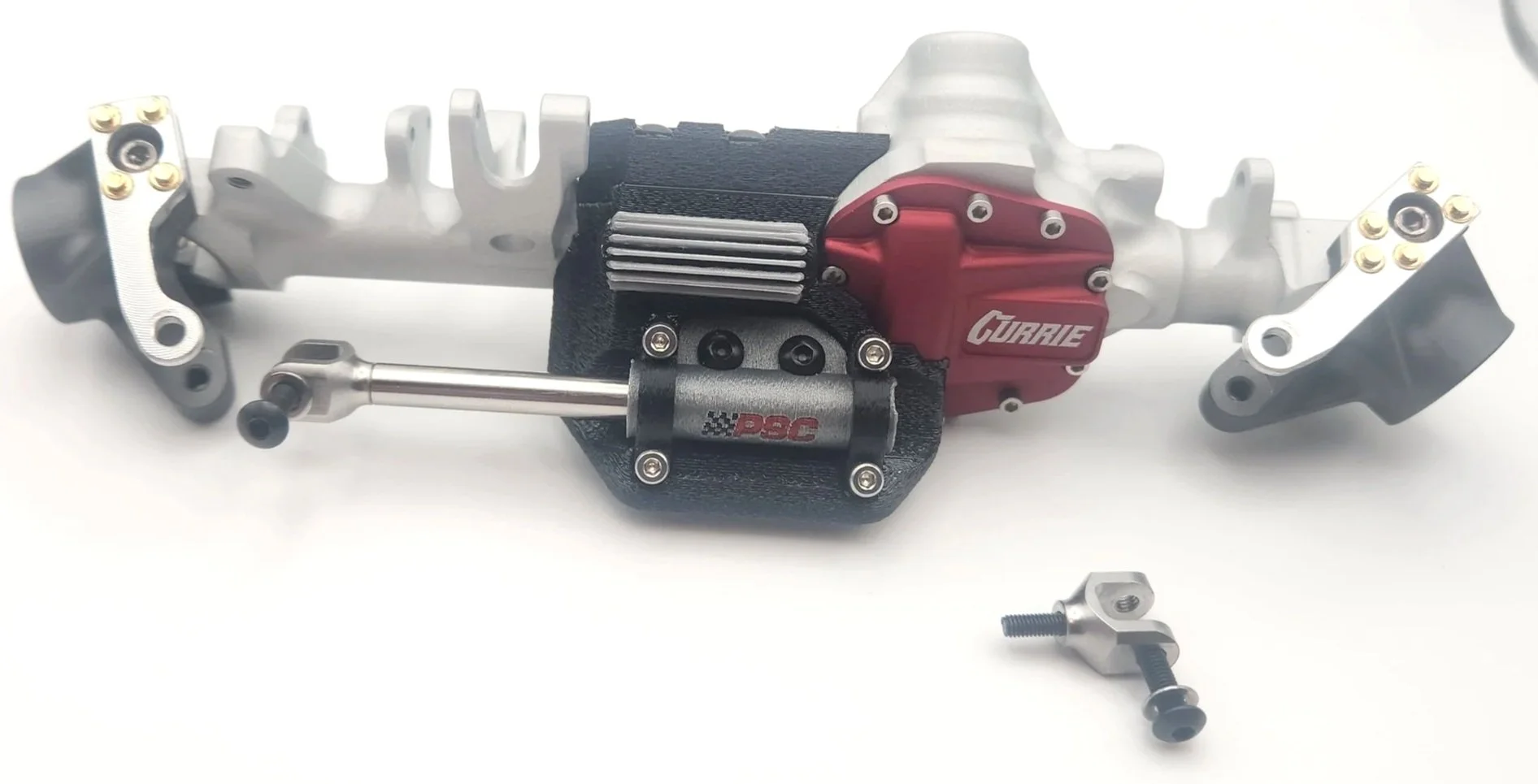

M2 Hex Driver

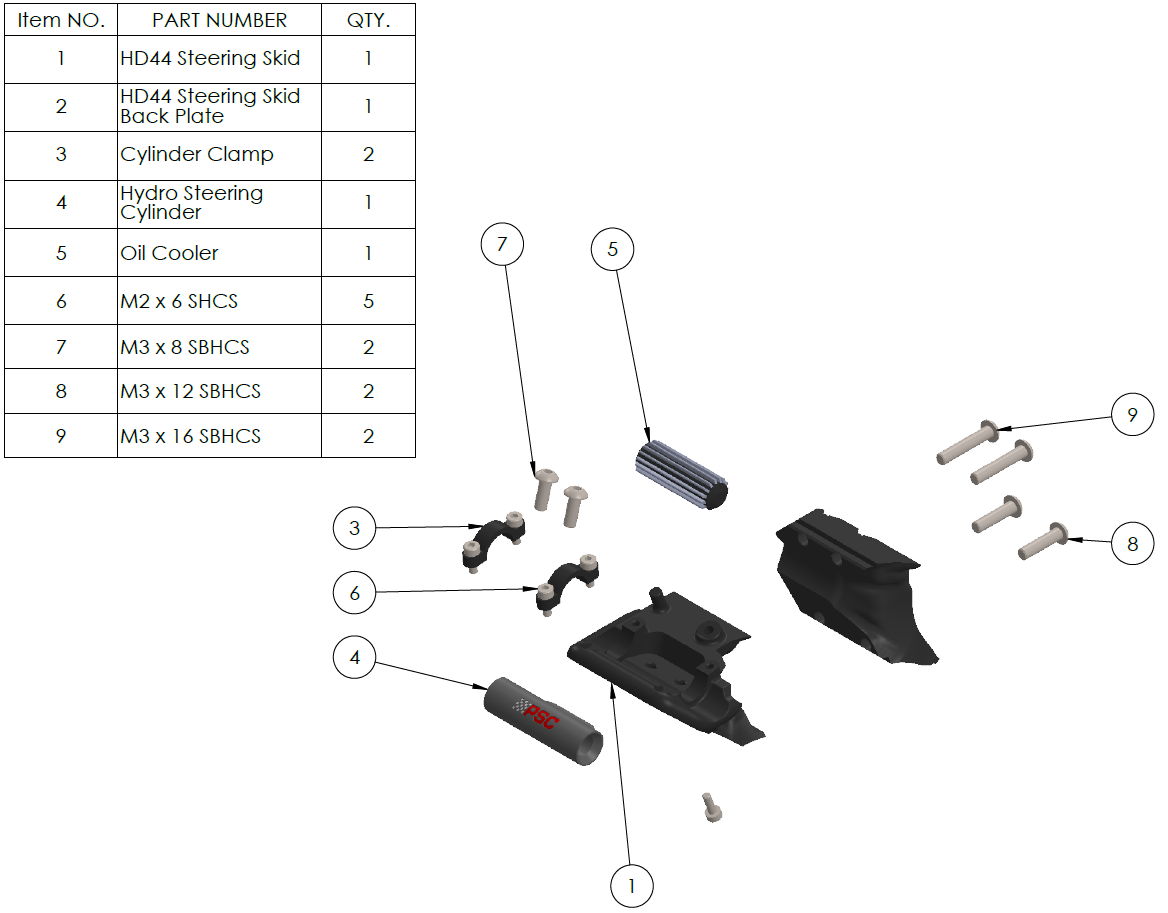

Logo with a black silhouette ship icon and the words 'Supplied Parts'

Skid

Silver and Black Cylinder

Oil Cooler

Silver and Black Clamps (Clamps are compatible with the H10 stock clamps or equivalent)

All Mounting hardware

Framed text that says 'Add'l Required Parts' with a dot pattern above.

*M4x20mm stud – Qty. 2

M3x25mm screw (retained from the passenger side of the axle)

M3x30mm screw

*Incision H10 Hydro Ram Steering Set - SKU: IRC00192

*2 add’l Vanquish rod ends - SKU: IRC00010 (or equivalent)

‍ ‍*Only required if you purchased the Partial Assembly kit version

Partial Assembly Kit

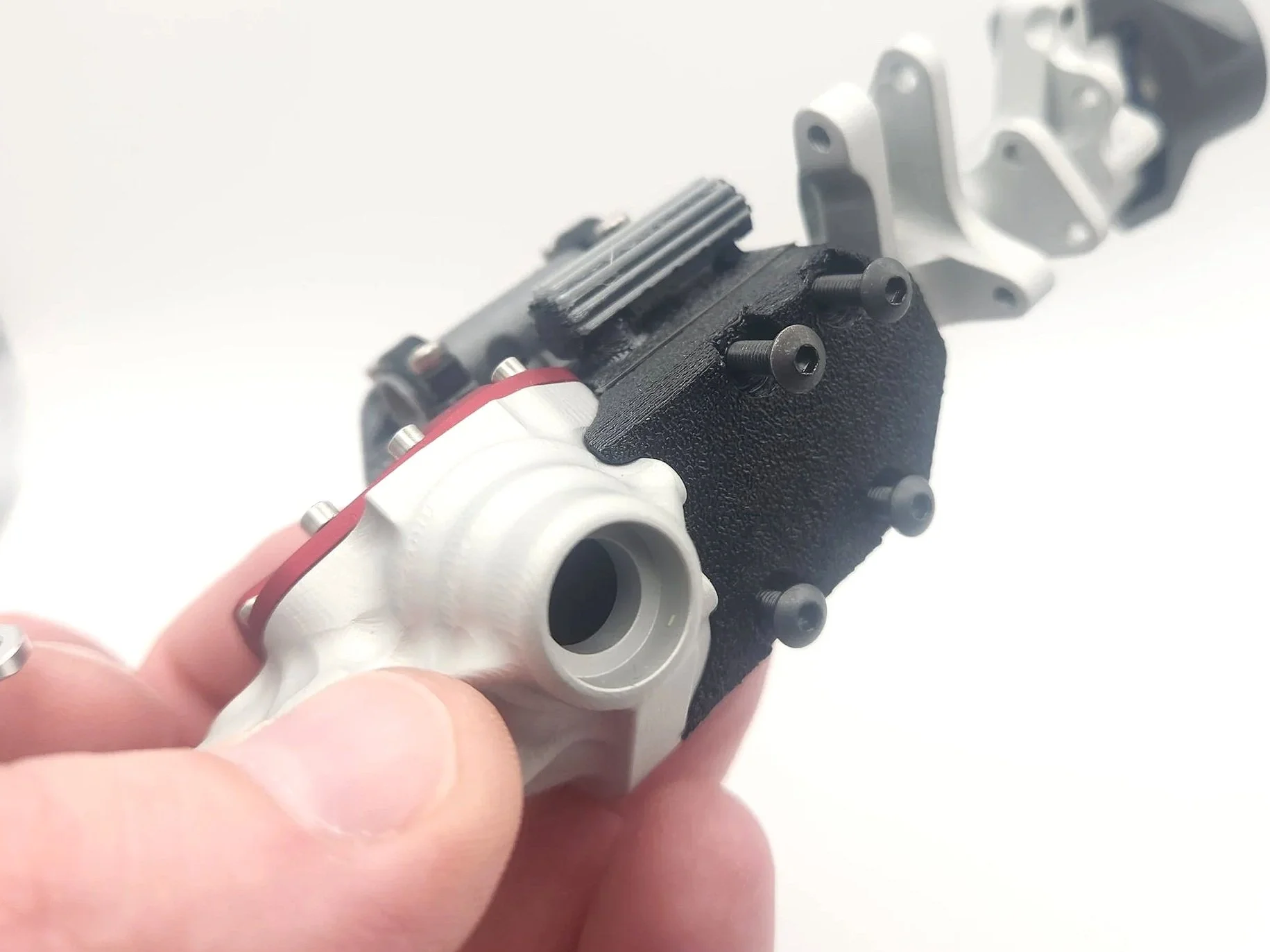

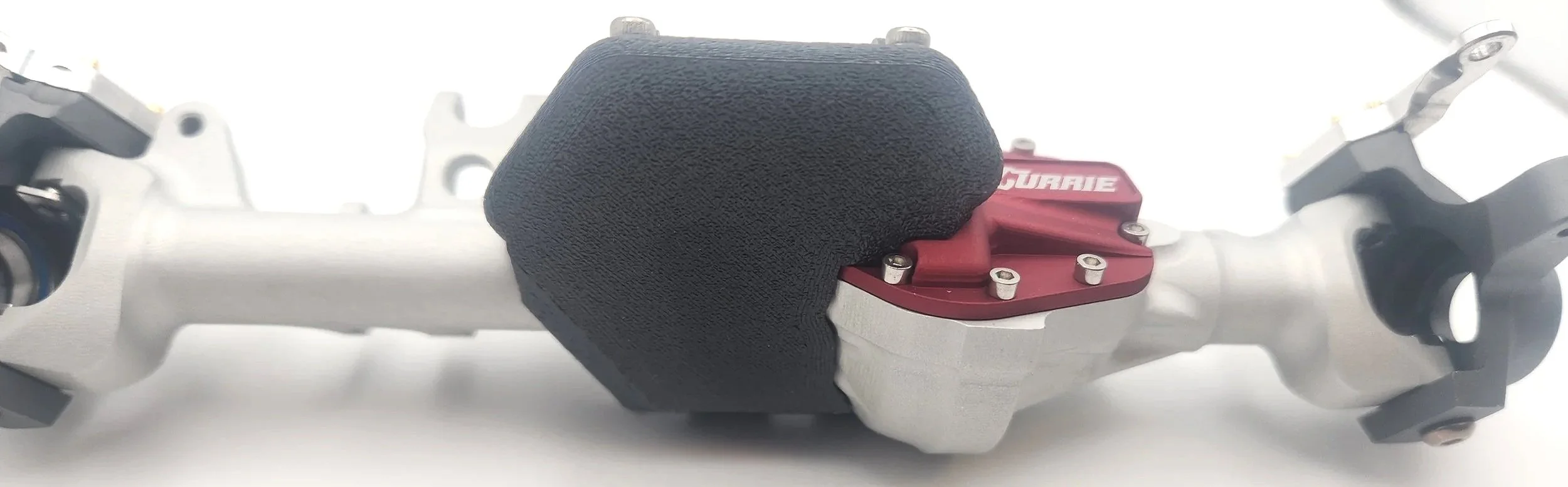

1-   Place Skid and back plate on the axle.

(this is for a Chassis Mounted Servo setup)

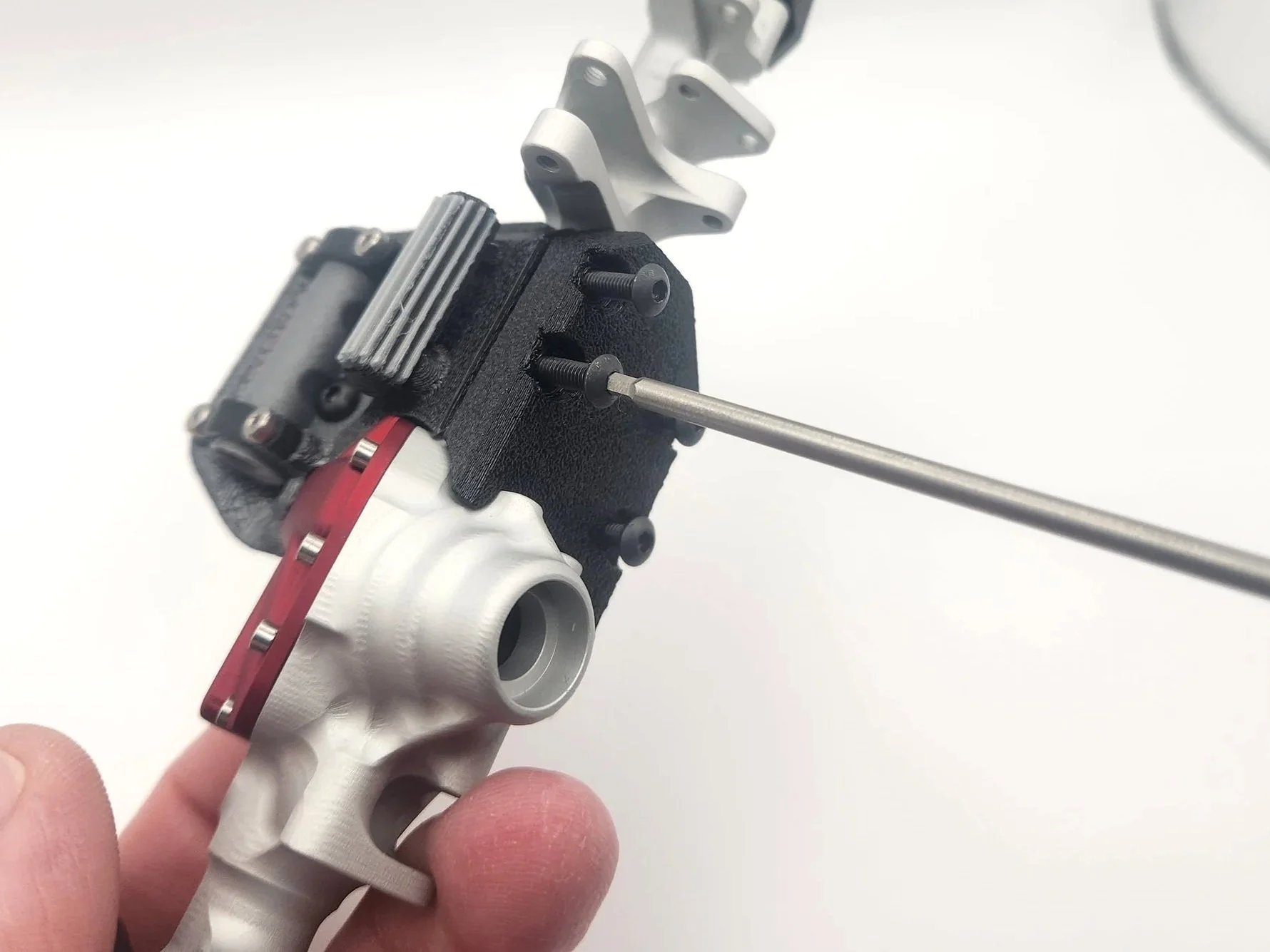

2-   Place the two M3×16mm hardware in the upper mounting on the back plate and the two M3x12mm in the lower location. Use M2 hex driver to tighten the bolts. Run the top two about 80% then snug the bottom two. Go back and snug to top two. It will snug up. Do not over tighten!

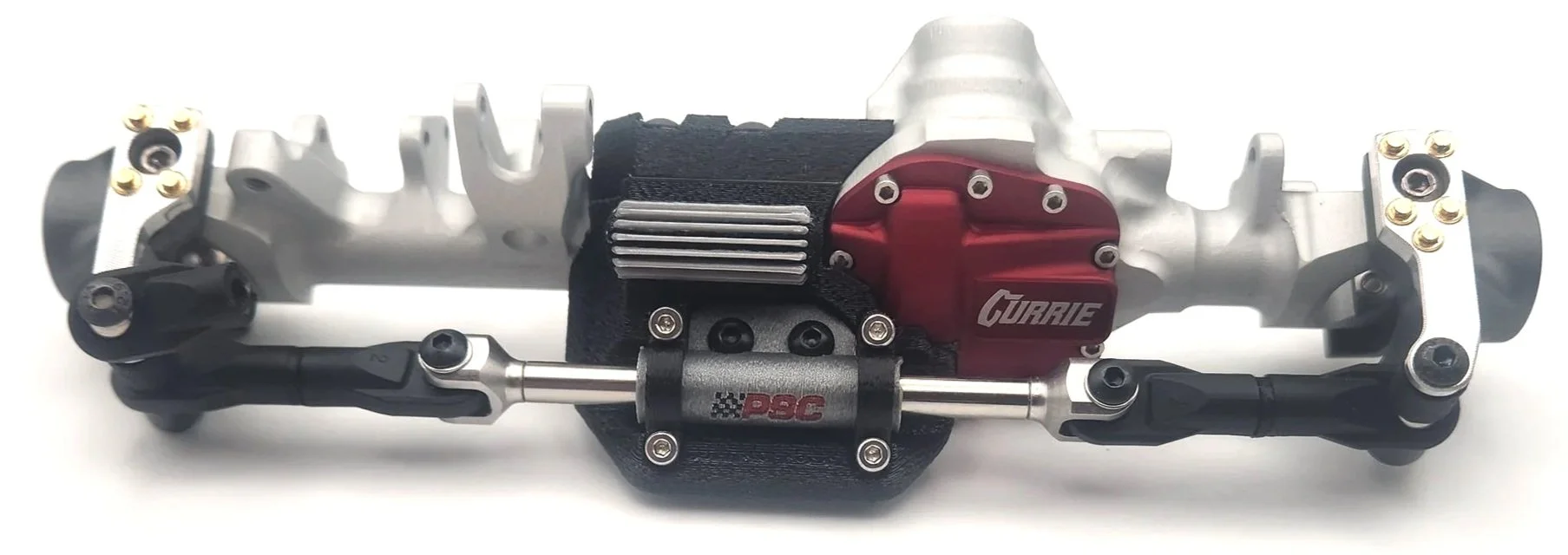

Full Assembly with Steering Ram kit:

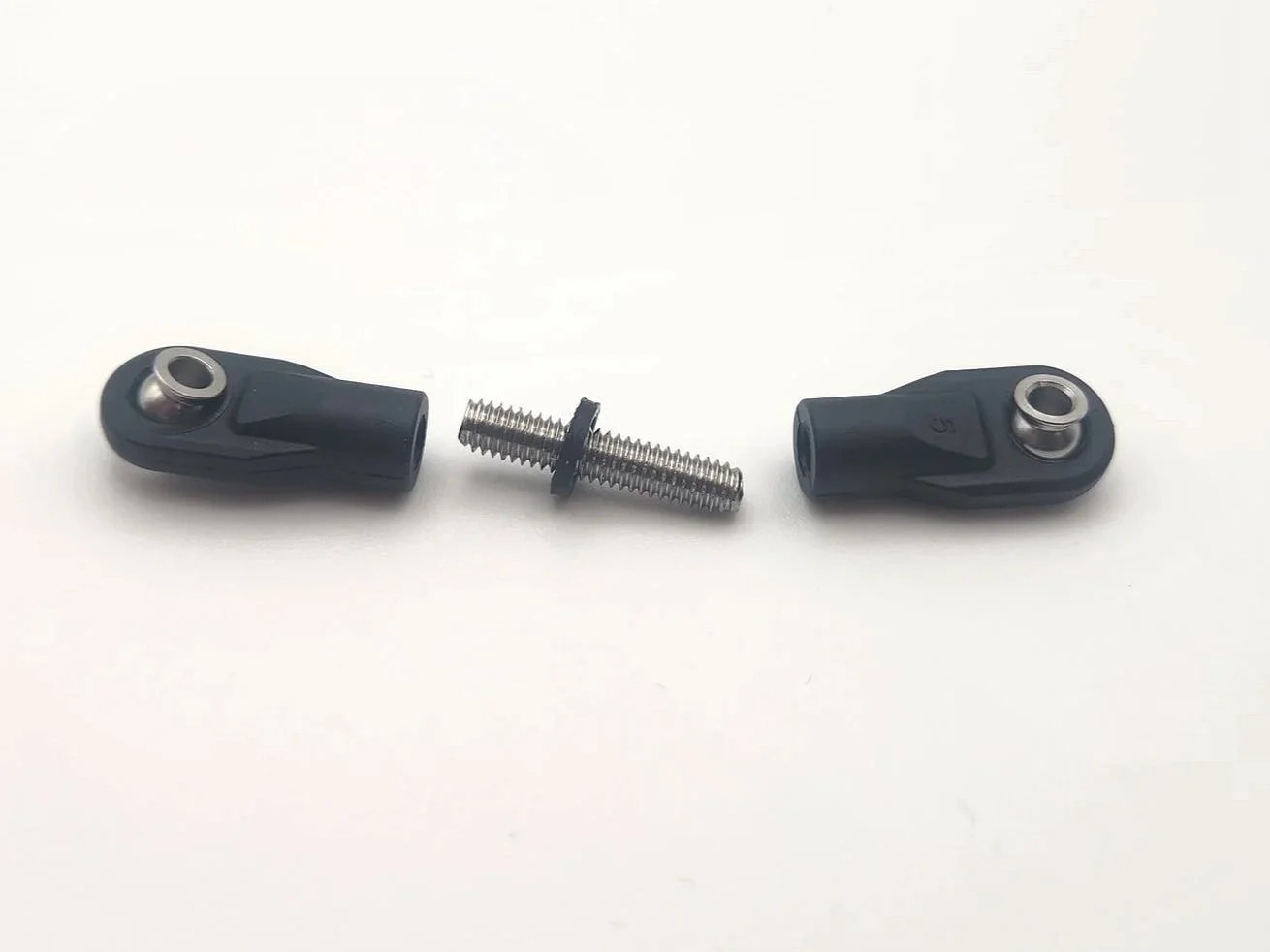

3-     To assemble the short steering links, take 4 standard Incision end links, insert the supplied pillow balls from the Steering Kit. I took a M4x20mm stud to join the 2 sets of rod ends with about 2.5mm spacer. Make sure the bolts that hold the linkage through the ram are facing up to clear the skid plate. The H10 links in the Incision kit do not work, they are too long. Slide the ram through the printed cylinder, bolt on yokes supplied in the Incision kit and install the short linkages. I would use a M3X30mm for the servo linkage side.
