F9 Capra Portal TTRC

Aluminum Axle Housing

Social media icons for Facebook and Instagram with the handle @crawler.addiction
Tools Needed

M2 Hex Driver

M2.5 Drill Bit

M3 Tap

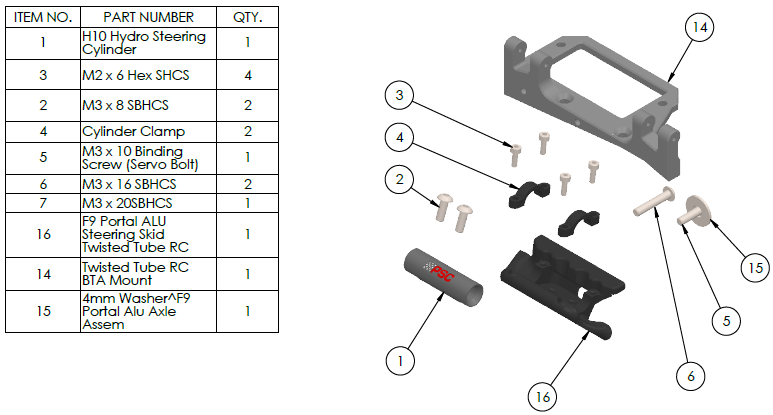

Supplied Parts icon with a boat ship outline and text

Skid

Silver and Black Cylinder

Silver and Black Clamps (Clamps are compatible with the H10 stock clamps or equivalent)

All Mounting hardware

Close-up of a website section with the text 'Add'l Required Parts' and an icon with a dotted square.

M4x30mm stud – Qty. 2

M3x25mm screw (retained from the passenger side of the axle)

M3x30mm

*Incision H10 Hydro Ram Steering Set - SKU: IRC00192

*2 add’l Vanquish rod ends - SKU: IRC00010 (or equivalent)

*Only required if you purchased the Partial Assembly kit version

Partial Assembly Kit

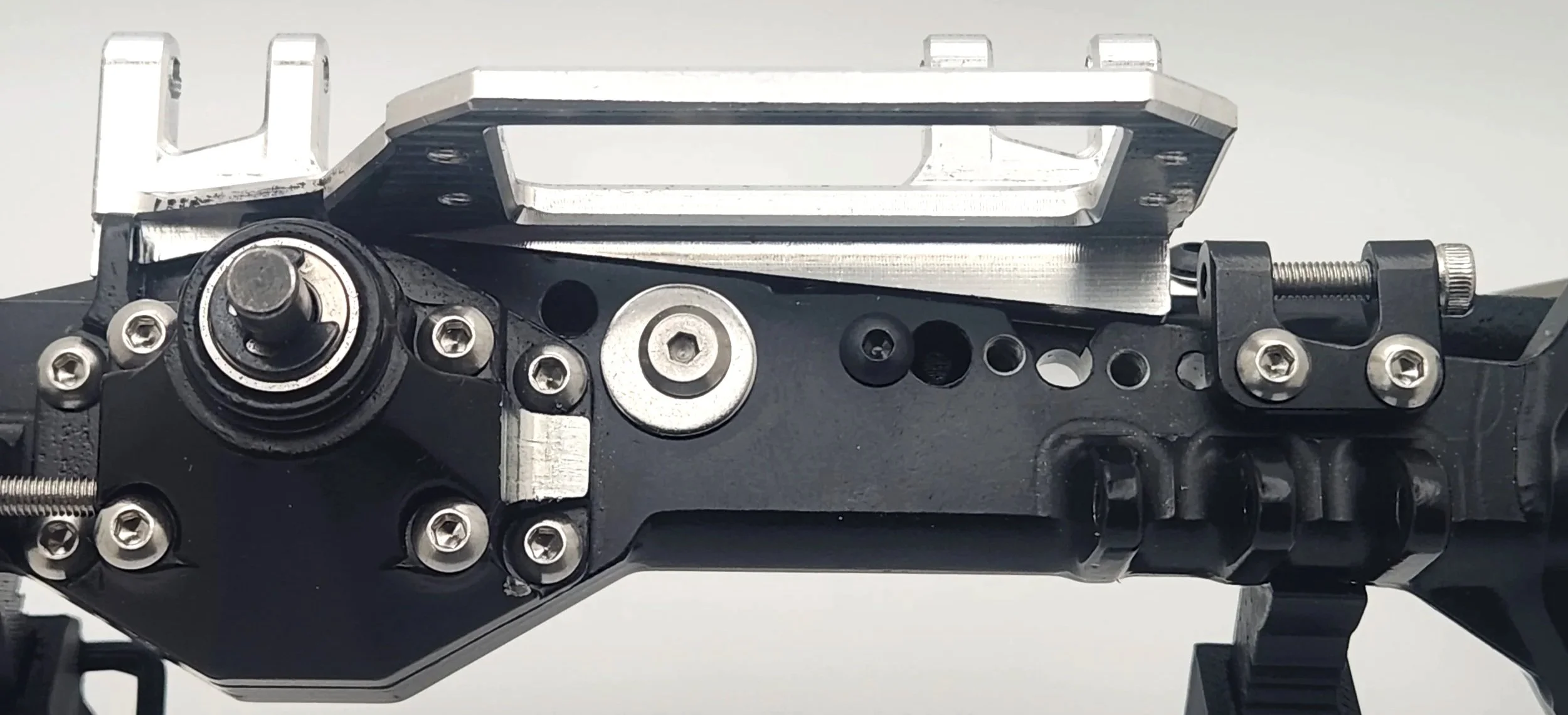

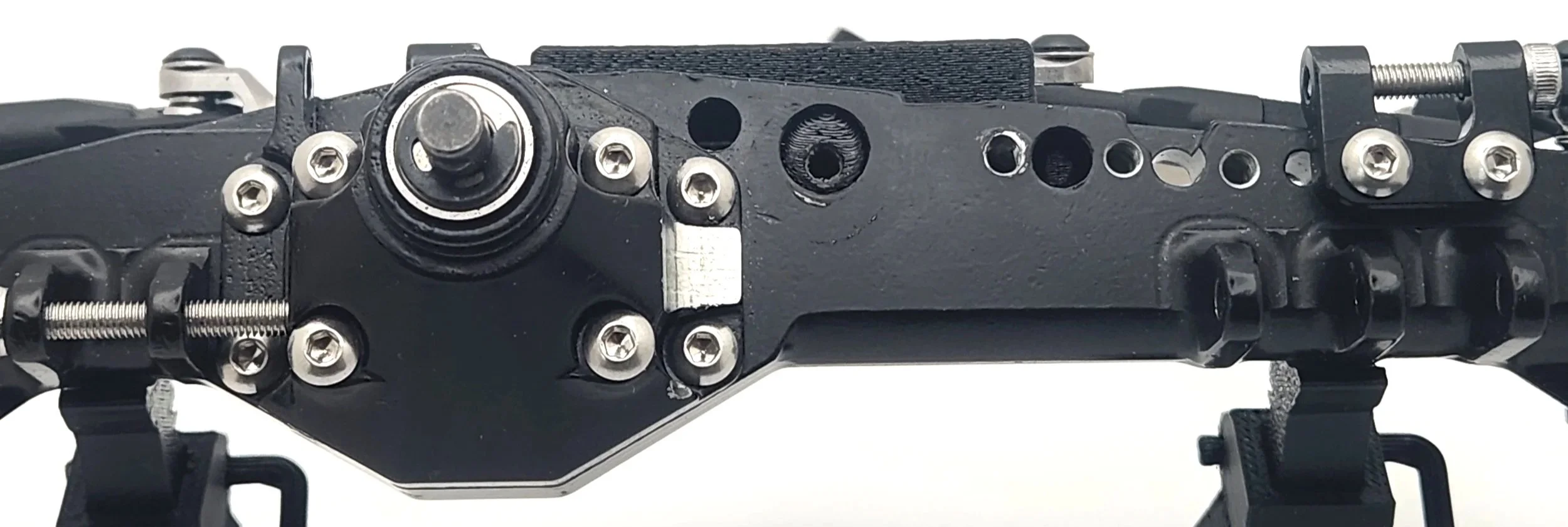

1-   Take a M2.5 drill bit and drill through from the back of the axle through the existing threaded hole, the hole is tapered so it should self center. Drill through the last bit of the taped hole for the BTA mount.

2-   Use the M3 Tap to chase the original threads from the back of the axle. Then proceed to tap all the way through the axle housing

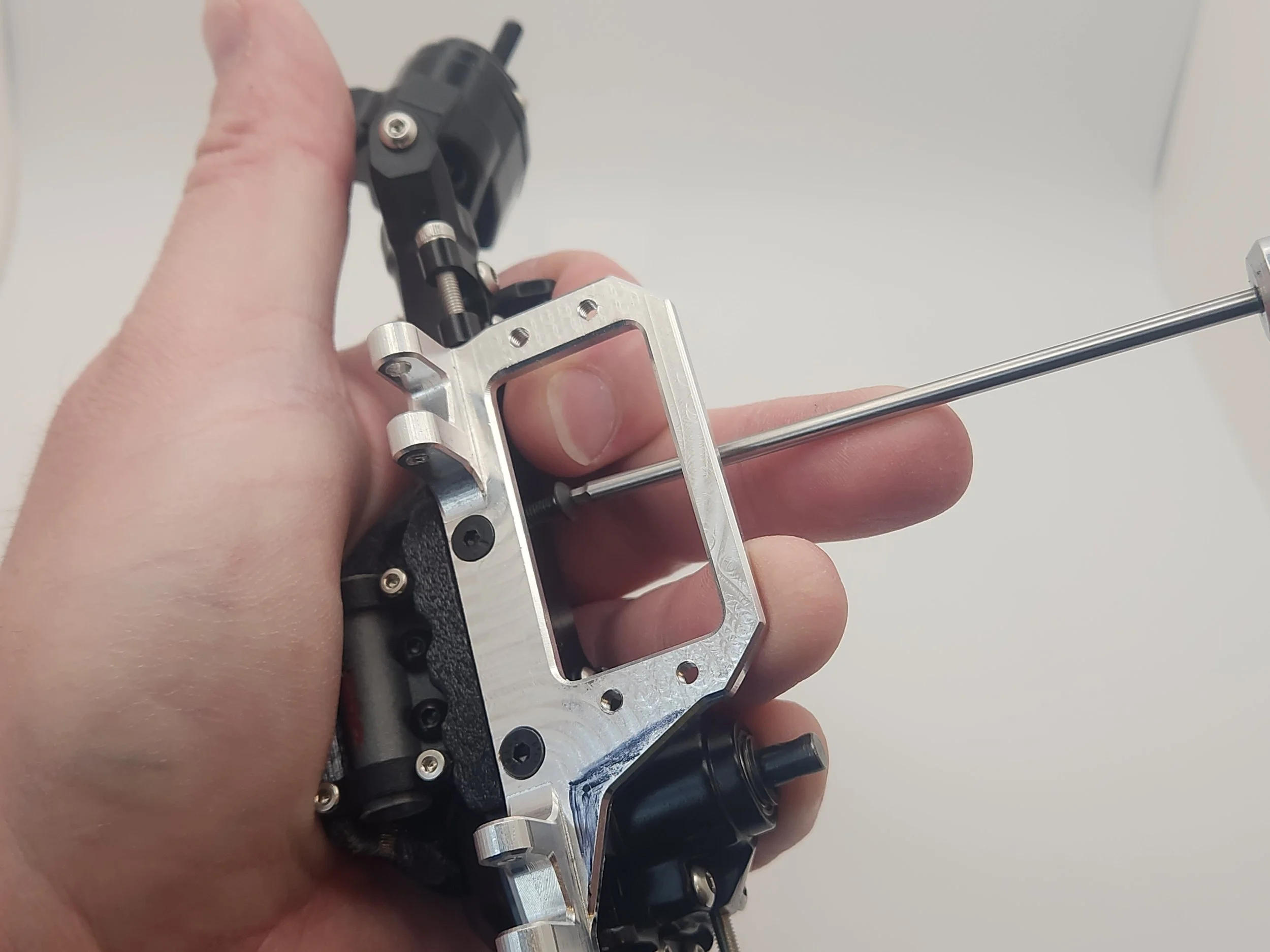

4-   Place M3×10mm Binding Head Screw with washer in the printed skid from the back of the axle, use M2 hex driver to tighten the bolt.

Close-up of a mechanical device with metal parts, with two small black screws circled in red.

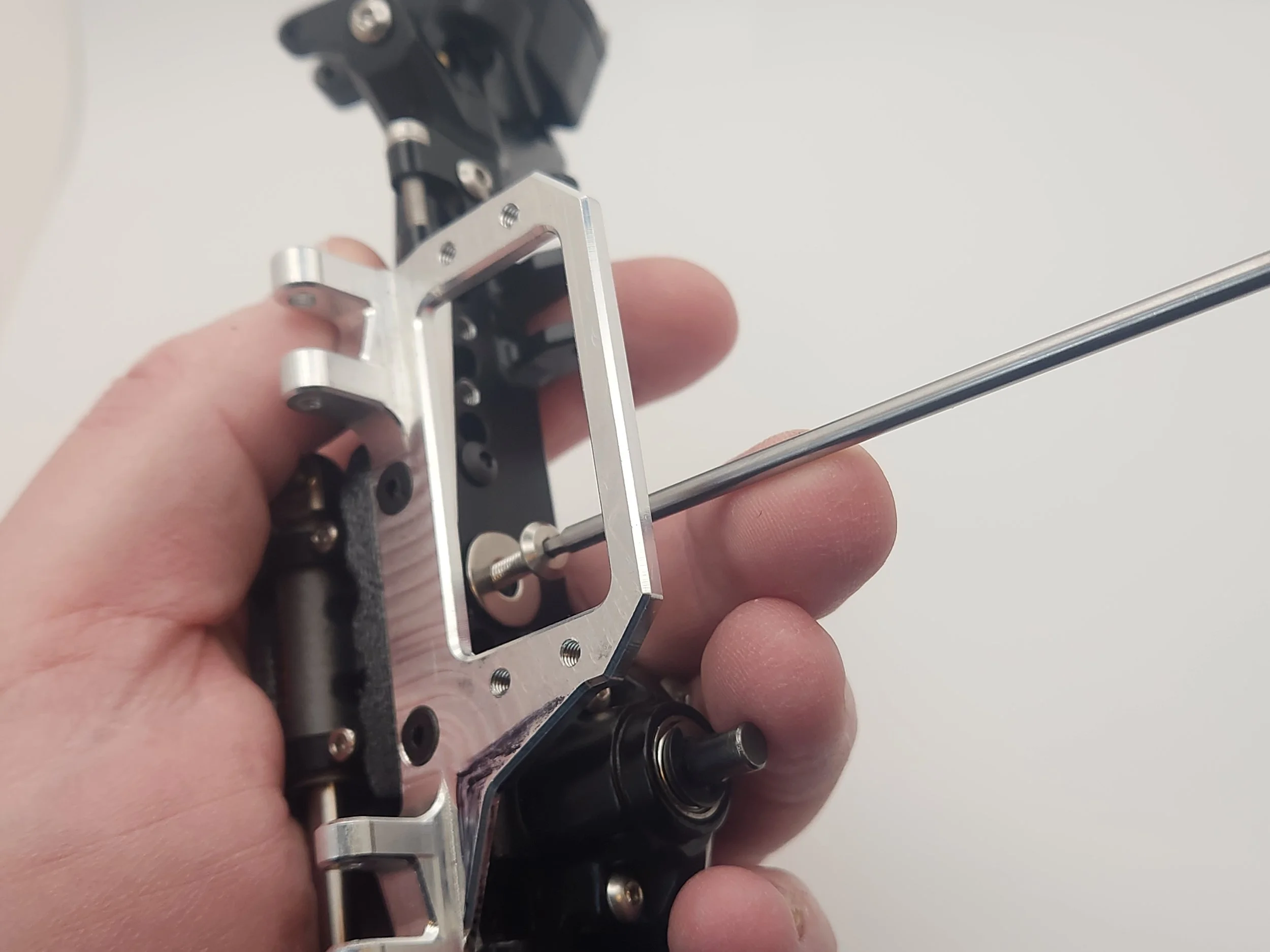

3-   Place Skid onto front of axle. Place M3×16mm Button head screw in the hole through the axle housing, hold the skid tight in place as you tighten the bolt with a M2 hex driver.

Close-up of a metallic object with a red circle highlighting a specific area.

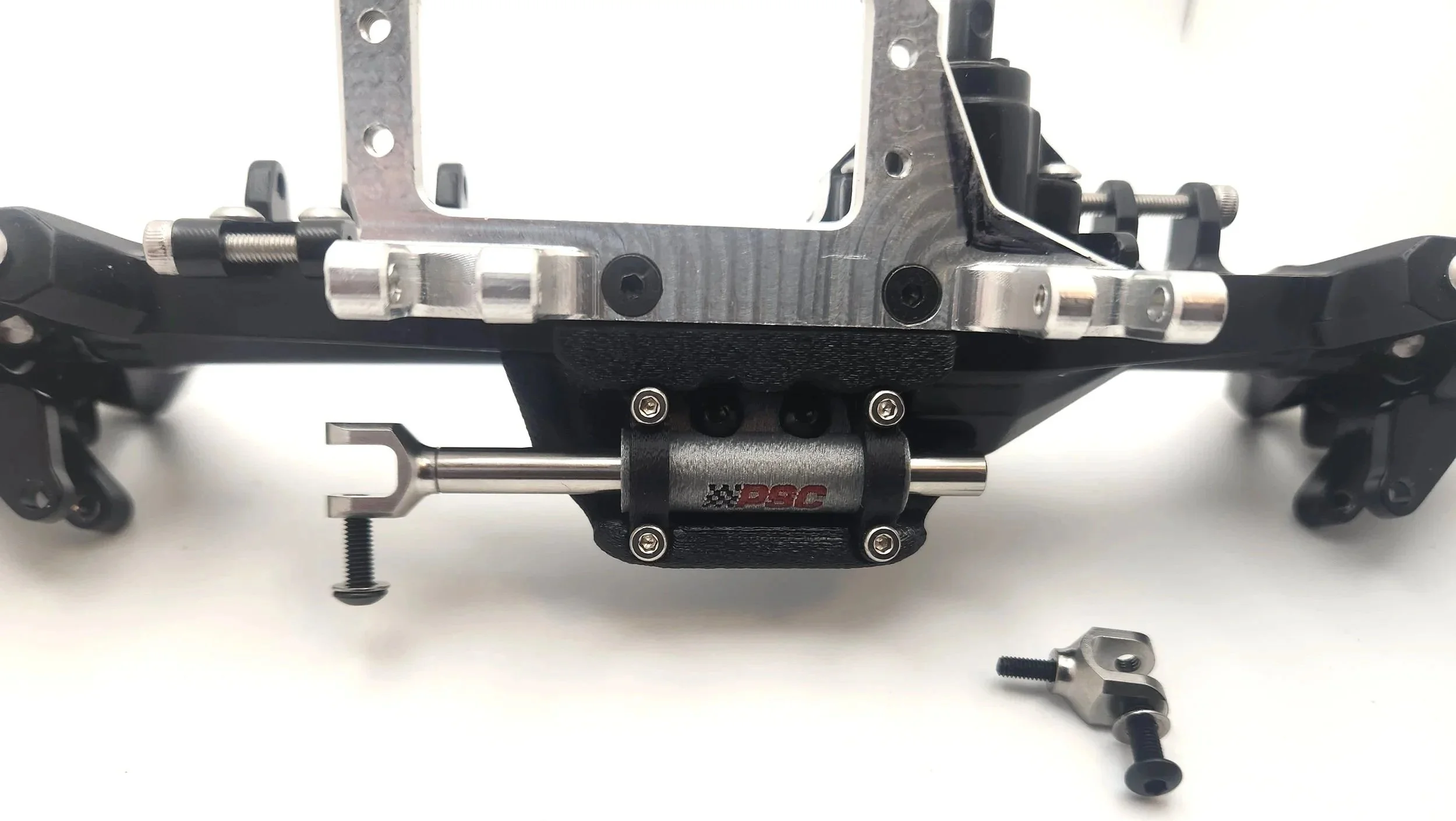

Full Assembly with Steering Ram kit:

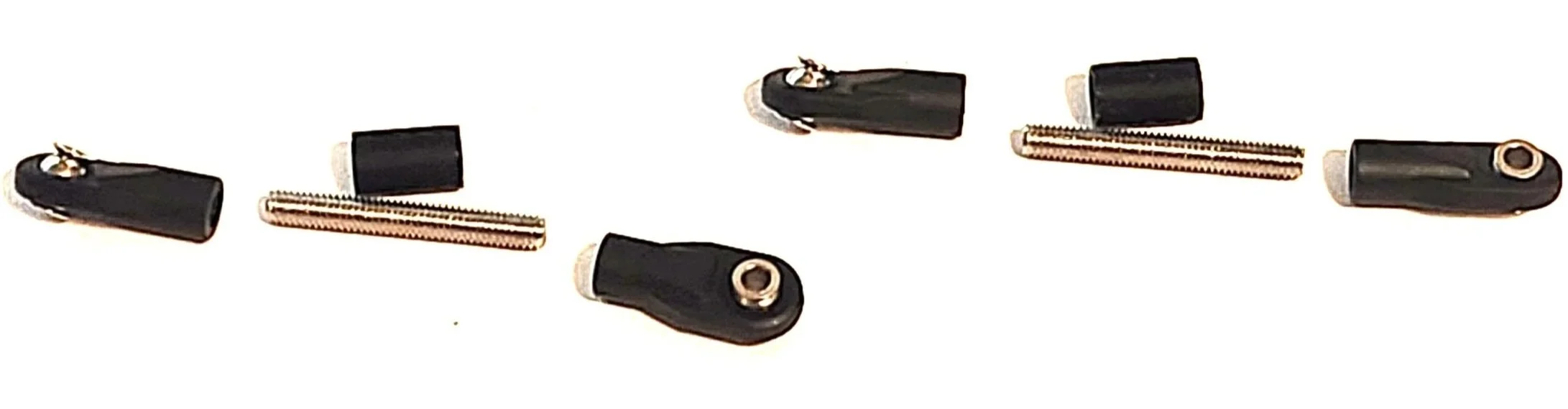

5-     To assemble the short steering links, take 4 standard Incision end links, insert the supplied pillow balls from the Steering Kit. I took a M4x30mm stud, Slide the ram through the printed cylinder, bolt on yokes supplied in the Incision kit and install the short linkages. This setup is a high steer, and is mounted on the top of the knuckle. Place the links to the topmost surface of the Knuckle, place a spacer where the old linkage would have gone. I would use a M3X30mm for the servo linkage side and a make sure the bolts that hold the linkage through the ram are facing up to clear the skid plate. The H10 links in the Incision kit do not work, they are too short.
