F10 Portal/Straight

Aluminum Axle Housing

Social media icons for Facebook and Instagram with the handle @crawler.addiction
Exploded view of a steering component assembly with labeled parts including aluminum steering skid, hydro steering cylinder, various bolts, clamps, and adapters.
Text reading 'Tools Needed' with a wrench and screwdriver icon above

M2 Hex Driver

Icon of a ship with the text 'Supplied Parts' underneath

Skid

Grey and Black Cylinder

Grey and Black Clamps (Clamps are compatible with the H10 stock clamps or equivalent)

Right Mount Adapter

Center Mount Adapter

All Mounting hardware

Placeholder graphic with three dots and a note about add'l required parts.

M4x20mm stud (Or M4x20mm bolt with the head cut off) – Qty. 2

M3x20mm screw (retained from the passenger side of the axle)

M3x30mm

*Incision H10 Hydro Ram Steering Set - SKU: IRC00192

*2 add’l Vanquish rod ends - SKU: IRC00010 (or equivalent)

*Only required if you purchased the unassembled parts kit version

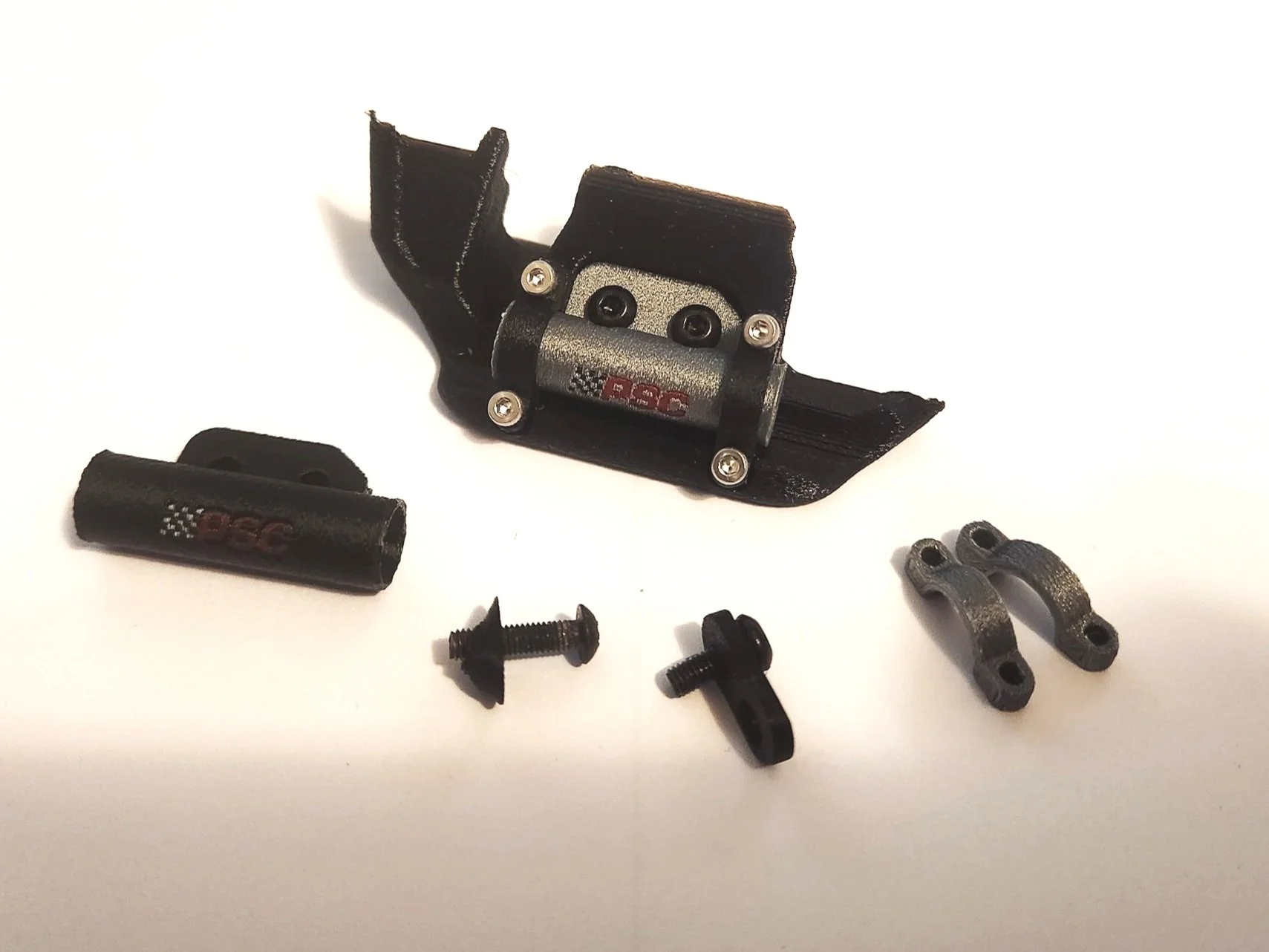

Disassembled black and gray mechanical part with screws and small metal pieces on a white background.

Partial Assembly Kit

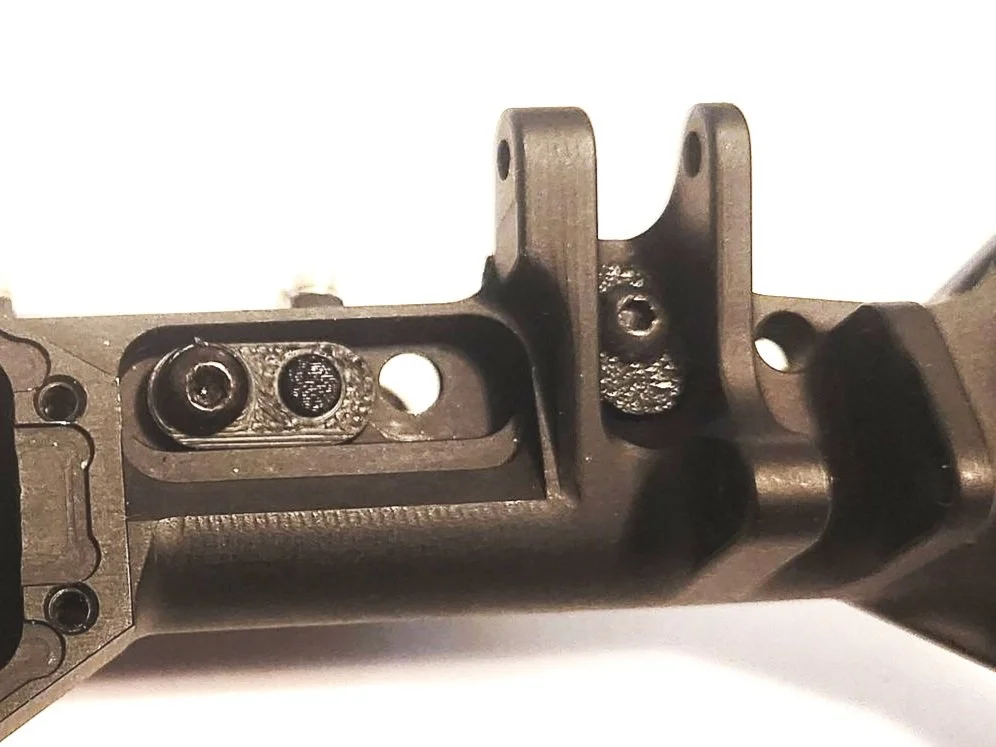

1-   Place Skid onto front of axle. Place Button head screw with RIGHT MOUNT ADAPTER correctly oriented so it matches the contours of the back side of the truss and axle, use M2 hex driver to tighten the bolt by hand. It will snug up. Do not over tighten!

2-   Place Button head screw with CENTER MOUNT ADAPTER correctly oriented so it matches the contours of the back side of the truss and axle, use M2 hex driver to tighten the bolt by hand. It will snug up. Do not over tighten!

Close-up of a mechanical part, possibly a component of a firearm or tool, with a black finish, and a screw with a pin.
Close-up of a firearm's slide with a missing or damaged component, exposing internal parts and a worn screw.
Close-up of a mechanical component, possibly part of an engine or machinery, with various holes and metal surfaces visible.
Close-up of a mechanical component with metal parts and screws, possibly part of a firearm or machinery.

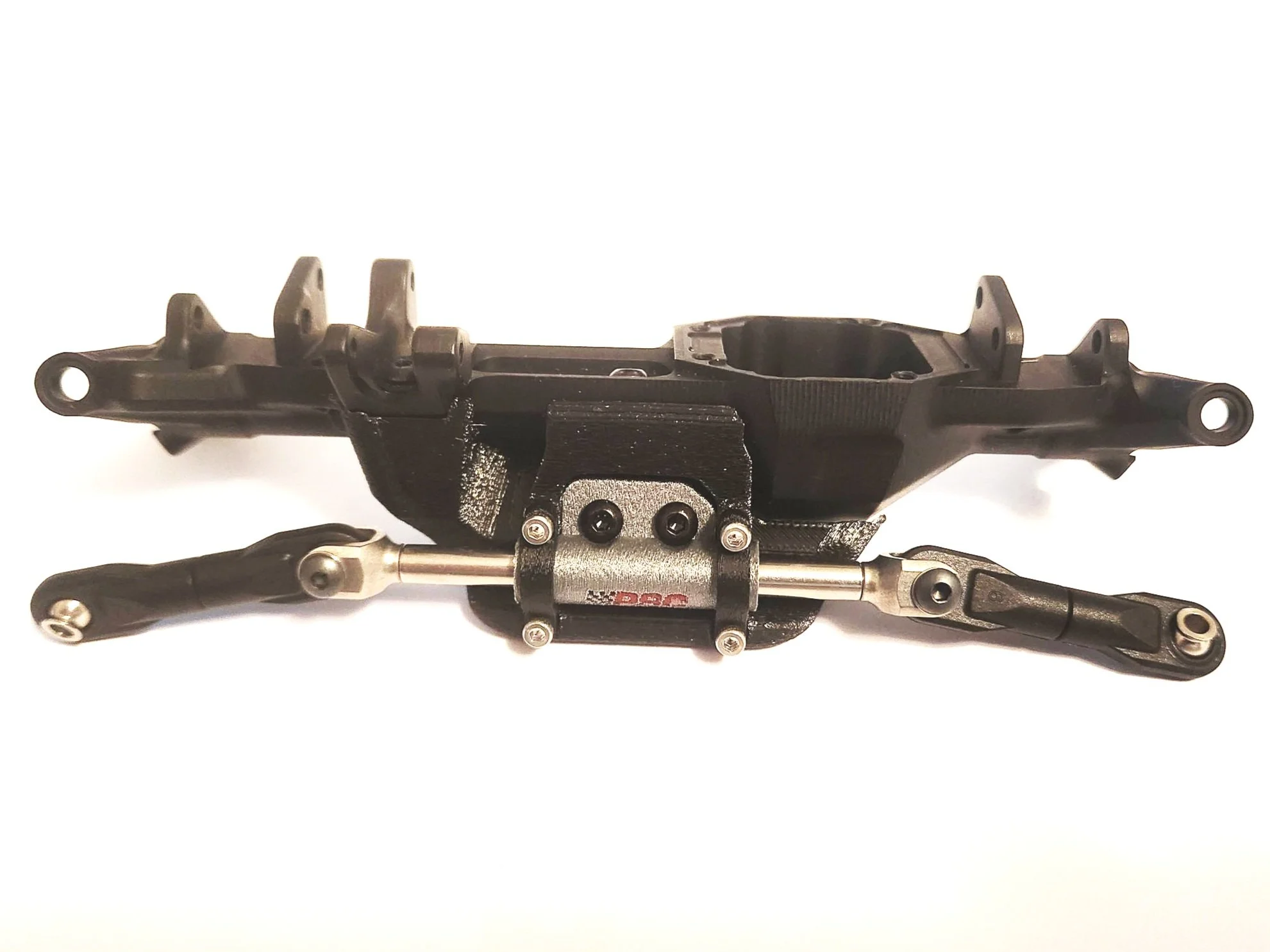

Full Assembly with Steering Ram kit:

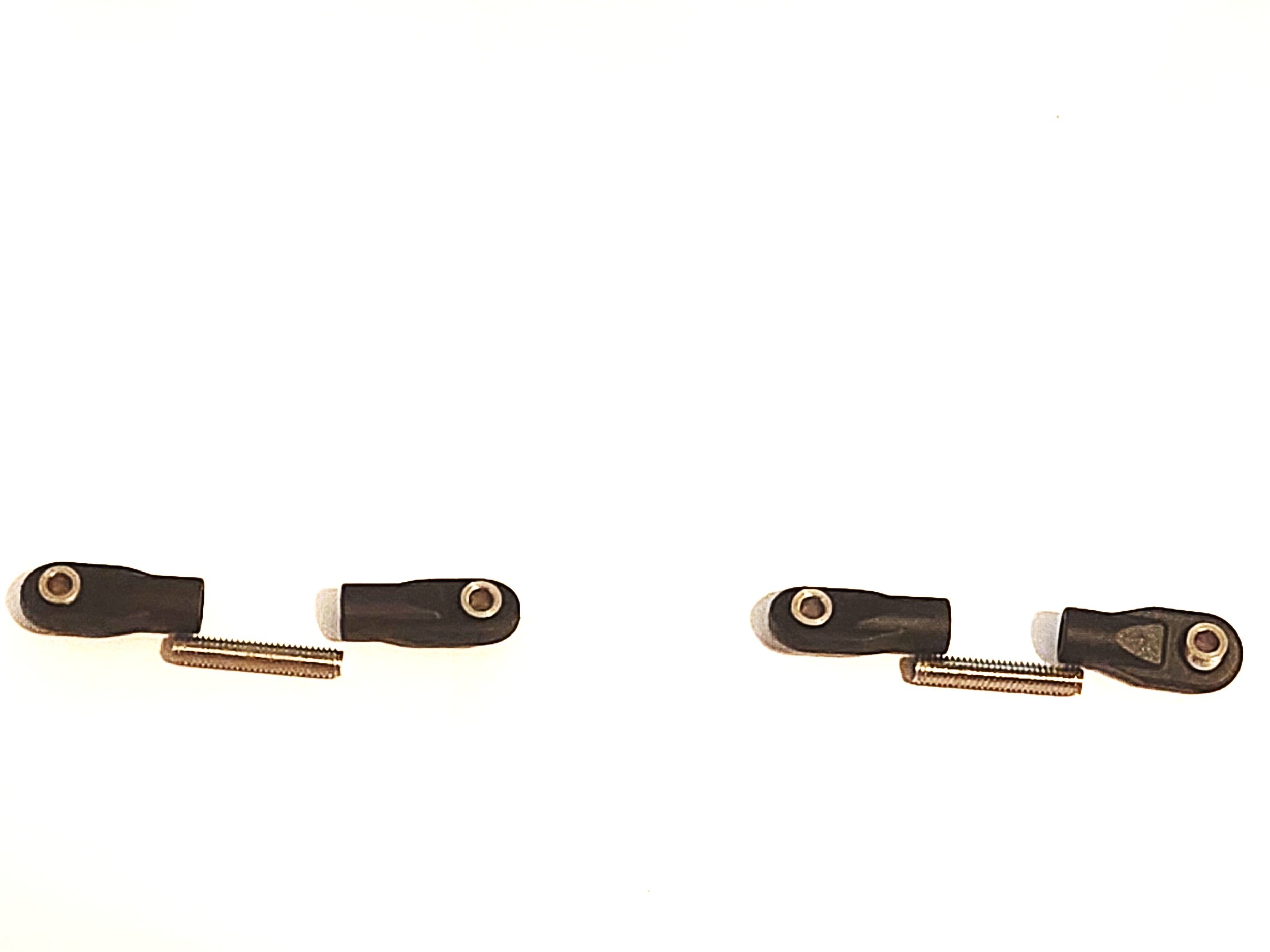

4-     To assemble the short steering links, take 4 standard Incision end links, insert the supplied pillow balls from the Steering Kit. I took a M4x20mm stud, if you don’t have one you can use a M4x20mm SHCS and used a cutoff wheel to remove the head and use the remaining 18mm-19mm stud length to join the end links together. Slide the ram through the printed cylinder, bolt on yokes supplied in the Incision kit and install the short linkages. This setup is a high steer, and is mounted on the top of the knuckle. Place the links to the topmost surface of the Knuckle, place a spacer where the old linkage would have gone. I would use a M3X30mm for the servo linkage side and a make sure the bolts that hold the linkage through the ram are facing up to clear the skid plate. The H10 links in the Incision kit do not work, they are too long.

Close-up of a small mechanical part assembly with screws, metal rods, and black plastic components, possibly a part of a model or machinery.
Two black and gold hinge parts with screws, positioned on a white background.

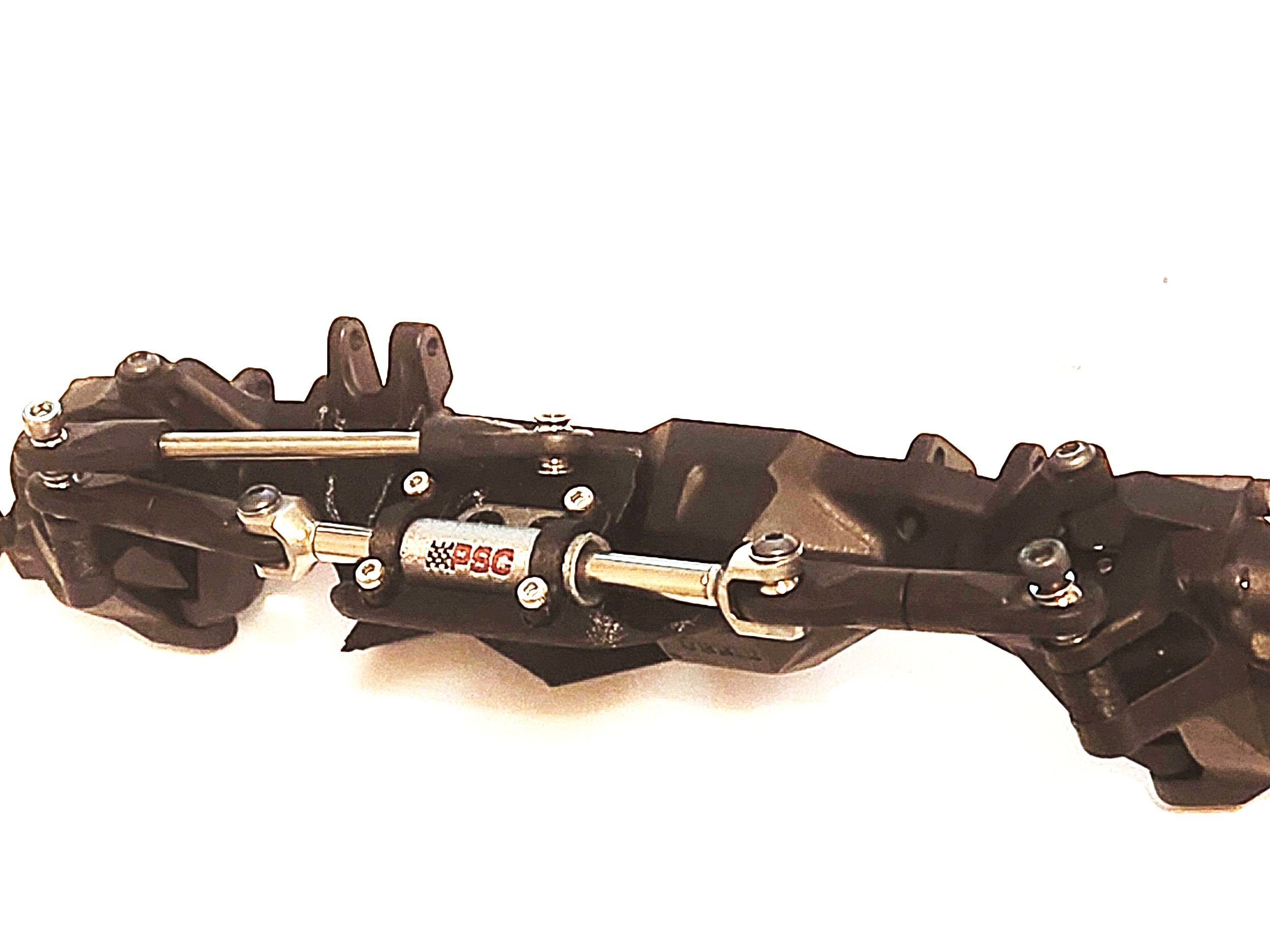

A mechanical chassis with suspension components and steering links, likely for a remote control car.
A mechanical chassis with metallic rods and joints, including a labeled PSC shock absorber, part of a radio-controlled car suspension system.
